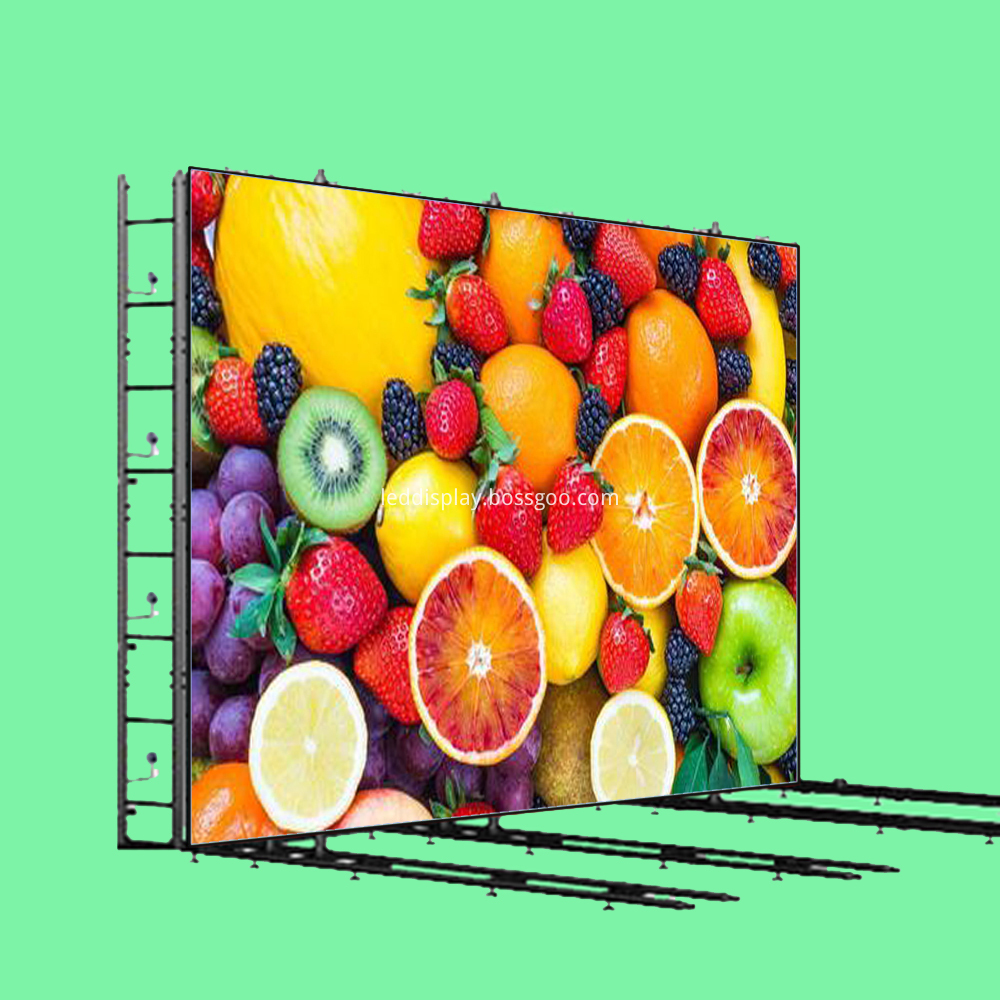

Video Screen P3 Led Wall Rental Resolution

  • Video Screen P3 Led Wall Rental Resolution
  • Video Screen P3 Led Wall Rental Resolution
  • Video Screen P3 Led Wall Rental Resolution

Video Screen P3 Led Wall Rental Resolution

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Square Meter
    Delivery Time: 12 Days
    Packaging: Carton packing with shockproof foam, wooden case and flight case for choose.
    Productivity: 200 squre meters per day.
    Brand: JONGSUN LED
    Transportation: Ocean,Land,Air,To Door
    Place of Origin: Guangdong, China.
    Supply Ability: 1000 squre meters per week.
    Certificate: ISO, CCC
    HS Code: 8531200000
    Port: Shenzhen,Guangzhou,Hongkong

Basic Info

Model No.: JSODS-576x576-RT01

Product Description

Outdoor 576x576 Die Cast Cabinet Series P3 P4.8 P6, Video Screen P3 Led Wall Rental Resolution

Led Screen Advertising improved competitive price with better effect and quality. The Die Casting Aluminum Cabinet size is 576x576mm, Outdoor Led Screen Usage, Good Choice For Led Screen Display P3mm P4.8mm P6mm.

Led Screen Rental to achieve uniform brightness and driving chip of high consistency and pixel brightness consistency.The Led Screen showed more uniform and more clear. When choose 576mm x 576mm Led Screen Rental Cabinet, it can depend on different price for P6 P4.8 P3, because all their module size is 192x192mm, it is easy to make 576x576 Die Cast.

led display company best choice

OUTDOOR FULL COLOR P3 P4.8 P6 LED DISPLAY SMD 3IN1


Unit Module of Led Screen Rental Item Parameter Parameter Parameter
Model Number HM-PH3-16S HM-PH4.8-10S HM-PH6-8S
Module size 192mm*192mm 192mm*192mm 192mm*192mm
Pixel pitch 3mm 4.8mm 6mm
Pixels Density 111111dots/m2 43402dots/m2 27777dots/m2
Pixel configuration 1RGB 3in1 1RGB 3in1 1RGB 3in1
Package mode SMD1921 SMD2727 SMD3535/2727
Pixel resolution 64dots(W)*64dots(H) 40dots(W)*40dots(H) 32dots(W)*32dots(H)
Drive type Constant Current Drive Constant Current Drive Constant Current Drive
Scan mode 1/16scan 1/10scan 1/8can
Port type HUB75 HUB75 HUB75
Brightness of white balance ≥5000cd/m2 ≥5500cd/m2 ≥5500cd/m2
LED Screen Display Cabinet Dimension 576mm*576mm 576mm*576mm 576mm*576mm
Monomer Module Number 9pcs 9pcs 9pcs
Pixel per cabinet 192dots*192dots 120dots*120dots 96dots*96dots
Best viewing distance 3M~30M 5M~48M 6M~60M
Best viewing angle 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H)
Temperature storage:-35ºC~+85ºC storage:-35ºC~+85ºC storage:-35ºC~+85ºC
working:-20ºC~+50ºC working:-20ºC~+50ºC working:-20ºC~+50ºC
Relative humidity 10%-95% 10%-95% 10%-95%
Thickness 120mm 120mm 120mm
Power Working voltage AC220V±10% AC220V±10% AC220V±10%
Average Power consumption ≤300W/m2 ≤300W/m2 ≤300W/m2
Max.Power consumption ≤800W/m2 ≤800W/m2 ≤900W/m2
Current ≤20mA(single LED) ≤20mA(single LED) ≤20mA(single LED)
Control System CPU Pentium4 or above Pentium4 or above Pentium4 or above
Operation system WIN98/2000/NT/XP/WIN7 WIN98/2000/NT/XP/WIN7 WIN98/2000/NT/XP/WIN7
Control method Synchronous and Asynchronous Synchronous and Asynchronous Synchronous and Asynchronous
Main Technical Parameter Driving device Constant drive IC Constant drive IC Constant drive IC
Refresh frequency ≥1920HZ ≥1920HZ ≥1920HZ
Grey scale/colors 65536gray level/16.7M colors 4096gray level/16.7M colors 4096gray level/16.7M colors
MTBF ≥100000hours ≥100000hours ≥100000hours
Power switch Automatic switch Automatic switch Automatic switch
Display Mode ≥800*600/1024*768 ≥800*600/1024*768 ≥800*600/1024*768
Rental Led Display Outdoor (16)

die cast led display (2)

P3 P4.8 P6 Rental Led Screen


For the Functions of led display

The more infomation of Jongsun LED Screen Display Products, we compare our Led Screen to Others, our grayscale, refresh rate and brightness is better.

Js Leds 6

Led Screen Display (2)

When you buy our LED Display products, we have the following sevice to you.

Free Training: Via the internet, or in our workshop, we provide all the traing including process

of operation LED Display, installation, maintenance, system set up, repair etc.

Trade Terms:

1, Payment: T/T 30% Deposits, 70% Balance to be paid before leave factory.

2, By Air or Sea based on customer's needs.

3, Shipping port: Shenzhen, Guangzhou, Hongkong for choose.

4, MOQ: 1 piece.

HM Project

led displayFAQ:

Q1: What is the warranty for the led display?

A1: (1)Normally we will provide customers 1-2 years warranty and long term technology support and after-service.

(2)After the completion of the LED Display project, we will conduct life maintenance of the system continuously

and update the and software.

(3)For the hardware equipment, we only collect expenses on components. Customer bears the round-trip freight

Q2: How do you ensure the quality
A2: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 24 hours.

Q3: How to do if any quality problems on our side in the warranty time?
A3: In usually every screen we will be ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare modules,

When all the spare modules use out, You can send back these modules for us to repair, and we will send to you after repair and testing&aging well.

Q4: OEM OR ODM accepted?
A4:Yes,we can do OEM & ODM, logo on the PCB or package both are available.

Q5: Which refresh rate for the led display you can provide?
A5:the maximum refresh rate can be achieved more than 3840Hz. Also we can provide the normally refresh rate if you need.

Q6: How many days will samples be finished?And how about the mass production?
A6: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.

Pixel DistanceViewing Distance
